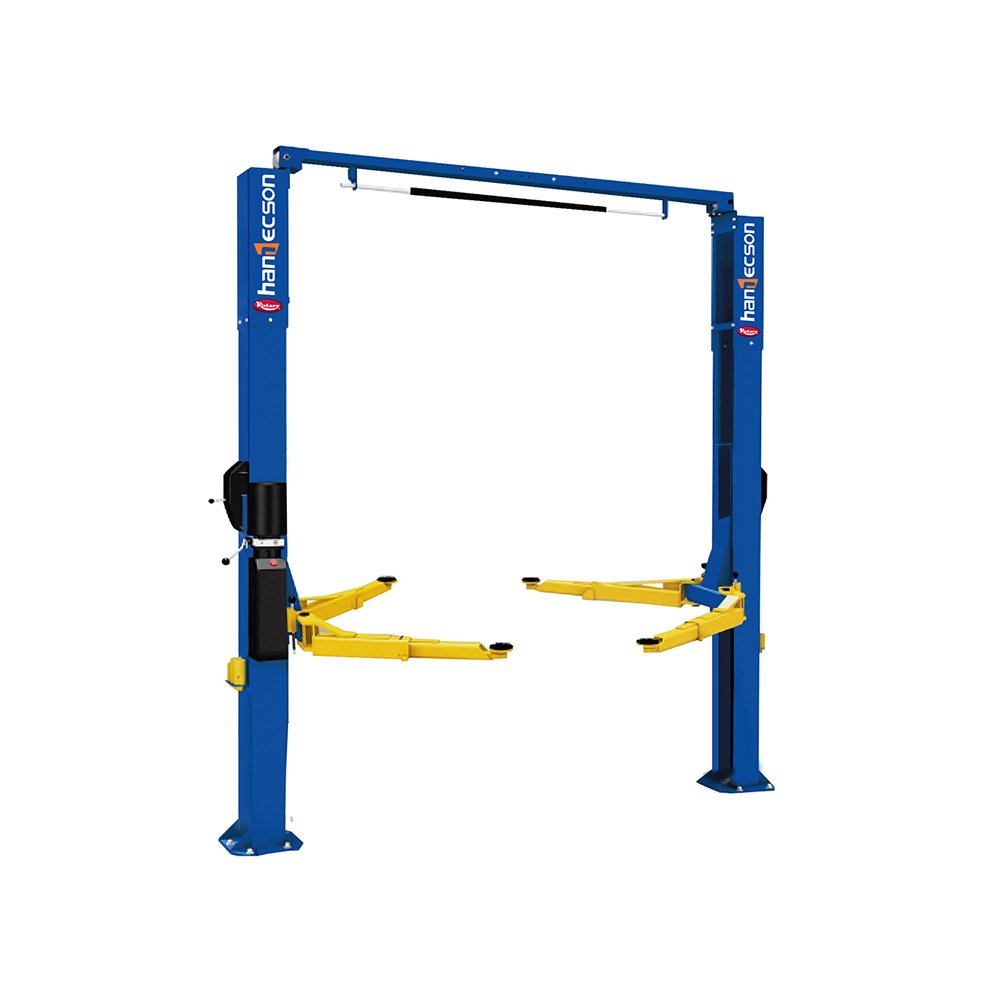

Hanmecson PRO 9D Plus

Lifting Capacity 4,082 kg
Lifting Height 1,930 mm
Overall Height 3,642 mm
Overall Width 3,353 mm
Drive-Through Clearance 2,515 mm
Inside Column Width 2,769 mm
Lifting Time 45 sec
Motor Power 2 HP
Power Requirement 3 Phase / 380 V / 50 Hz

📄 Download Brosur

FEATURES:

  • Clear floor model asymmetric arm design with symmetric post for ease of vehicle entry and exit
  • Optional screw-up truck adapters and 89mm adapter extensions available (shown with 130mm adapter)
  • Padded shut-off bar to prevent damage caused by lifting a vehicle too high
  • Two heavy-duty hydraulic cylinders designed to minimize down-time by requiring little maintenance
  • Symmetric 2-post lift with Asymmetric arm design provide more pickup points than ever before
  • Adapters and bracket included
