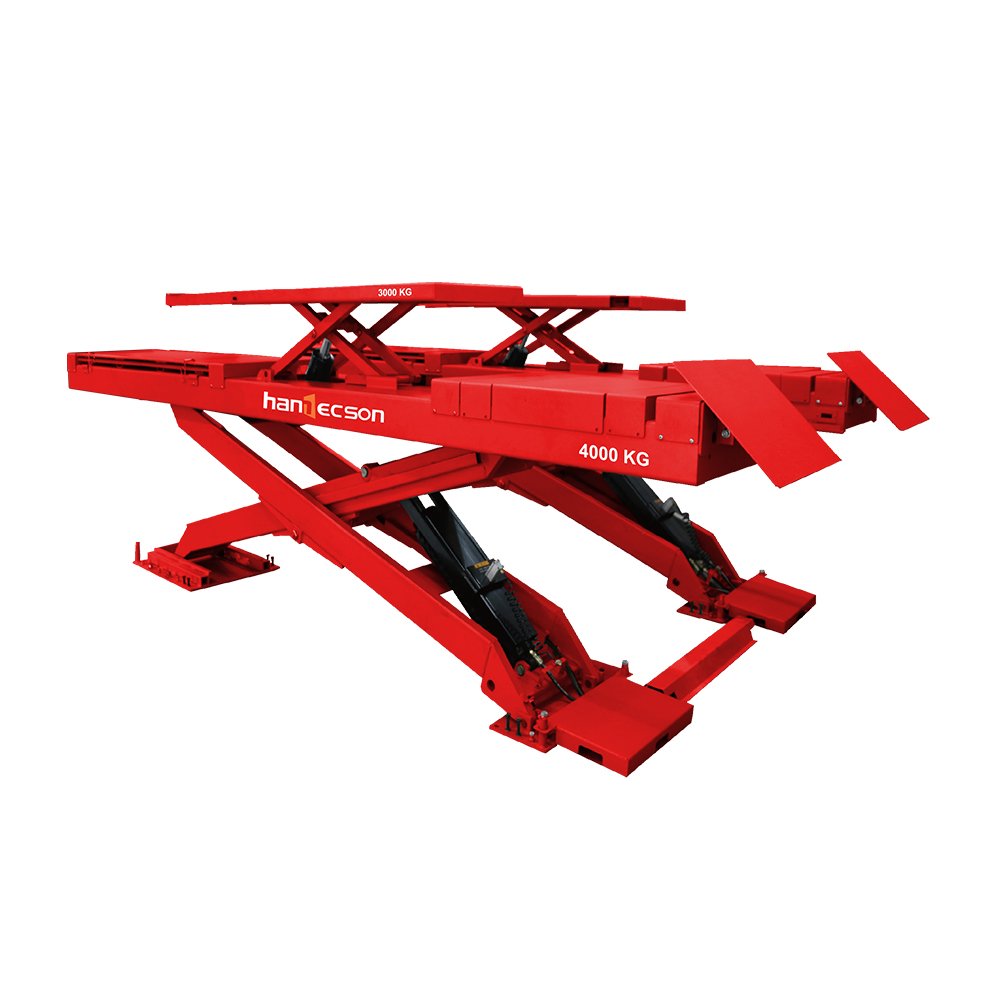

Hanmecson NBS 40AL-45 Double Scissor lift
| Capacity |
4,000 kg |
| Lifting Height |
1,920 mm |
| Lifting Table Height |
400 mm |
| Lowered Height |
345 mm |
| Overall Length |
4,989 mm |
| Overall Width |
2,206 mm |
| Runway Length |
4,500 mm |
| Runway Width |
625 mm |
| Lifting Table Length |
1,400 – 2,100 mm |
| Motor Performance |
3 kW |
| Electrical Connection |
3 Ph / 380 V / 50 Hz |
| Air Pressure |
6 – 8 bar |
| Lifting Table Capacity |
3,000 kg |

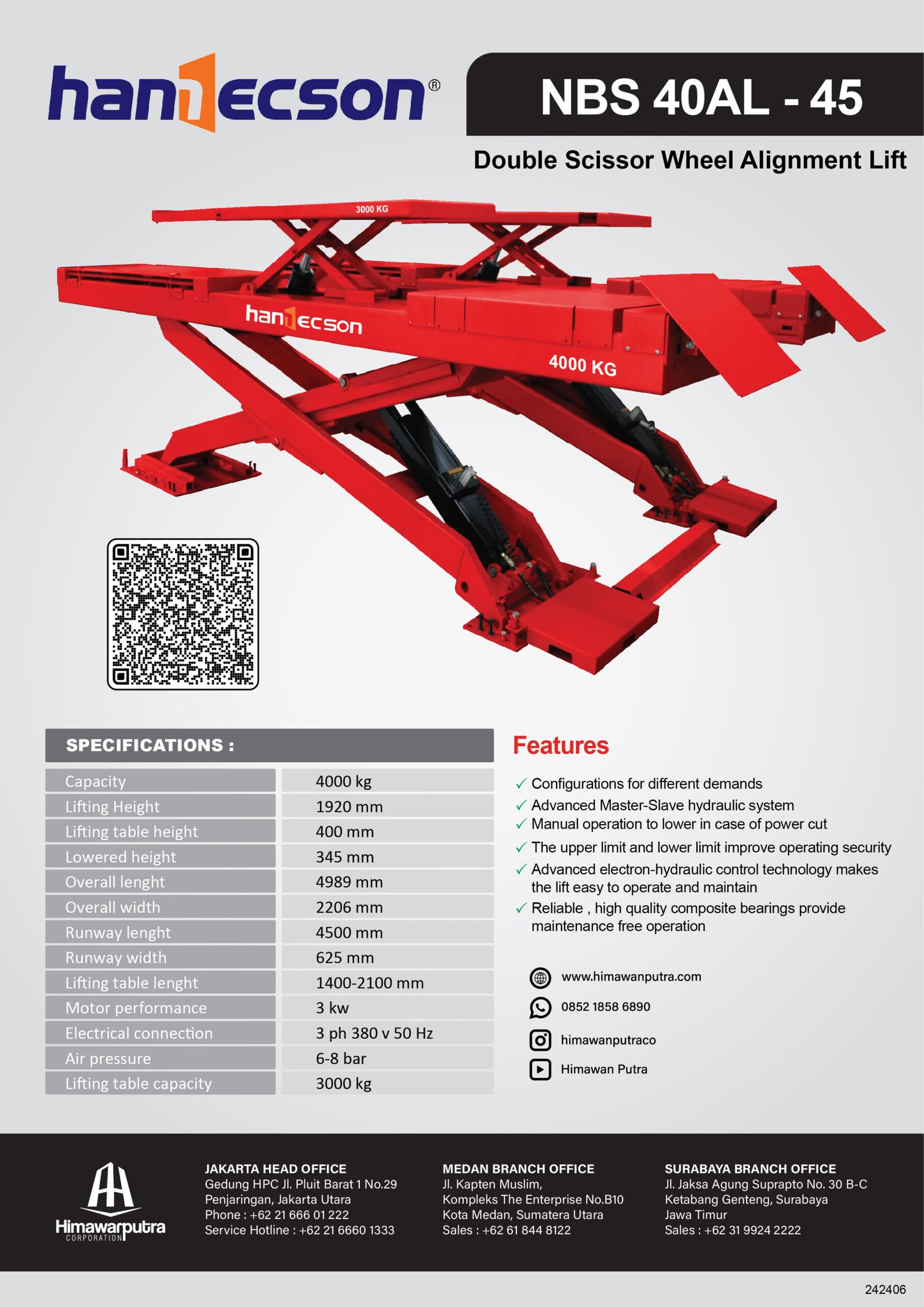

📄 Download Brosur
FEATURES:
- Configurations for different demands
- Advanced Master-Slave hydraulic system
- Manual operations to lower incase of power cut
- The upper limit and lower limit improve operating security
- Advanced electron-hydraulic control technology makes the lift easy to operate and maintain
- Reliable, high quality composite bearings provide maintenance free operation
