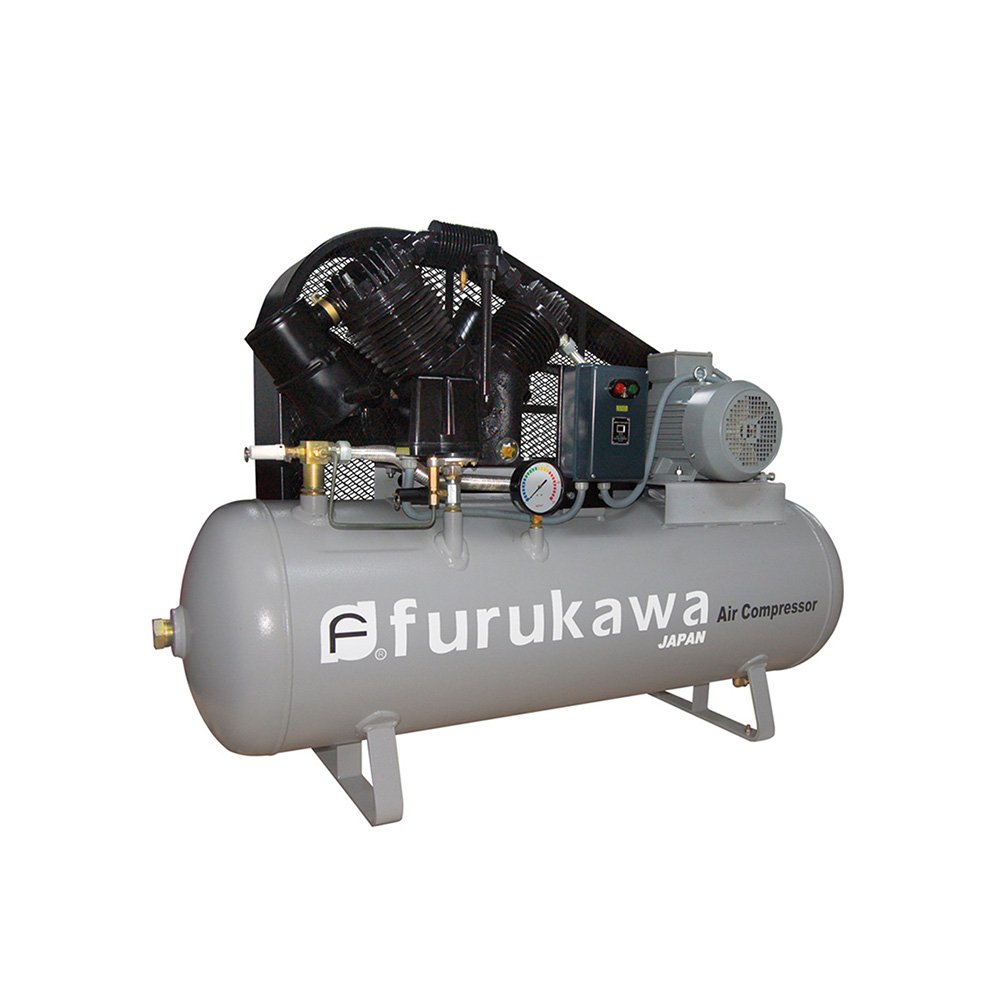

Furukawa Air Compressor

Furukawa Air Compressor

DS 05220

Motor Power	5 HP
Free Air Delivery	0.41 m³/min / 14.5 cfm
Compressor Speed	925 rpm
Power Supply	3.7 kW / 400 V / 3 Ph / 50 Hz
Number of Cylinders	2
Tank Capacity	220 L
Overall Dimensions (L×W×H)	1595 × 500 × 1085 mm

DS 75220

Motor Power	7.5 HP
Free Air Delivery	0.58 m³/min / 20.6 cfm
Compressor Speed	1050 rpm
Power Supply	5.5 kW / 400 V / 3 Ph / 50 Hz
Number of Cylinders	2
Tank Capacity	220 L
Overall Dimensions (L×W×H)	1600 × 630 × 1120 mm

DS 10500

Motor Power	10 HP
Free Air Delivery	0.85 m³/min / 30.1 cfm
Compressor Speed	750 rpm
Power Supply	7.5 kW / 400 V / 3 Ph / 50 Hz
Number of Cylinders	3
Tank Capacity	500 L
Overall Dimensions (L×W×H)	1925 × 885 × 1350 mm

DS 15500

Motor Power	15 HP
Free Air Delivery	1.25 m³/min / 44.1 cfm
Compressor Speed	1150 rpm
Power Supply	11 kW / 400 V / 3 Ph / 50 Hz
Number of Cylinders	3
Tank Capacity	500 L
Overall Dimensions (L×W×H)	1925 × 885 × 1350 mm
